Space Filling Curves #

A C program that generates 2D Hilbert space-filling curves and outputs them as BMP images.

https://www.youtube.com/watch?v=3s7h2MHQtxc (Highly Reccomended).
Learn how programing, discrete maths, real analsis comes together to define Space filling curves.

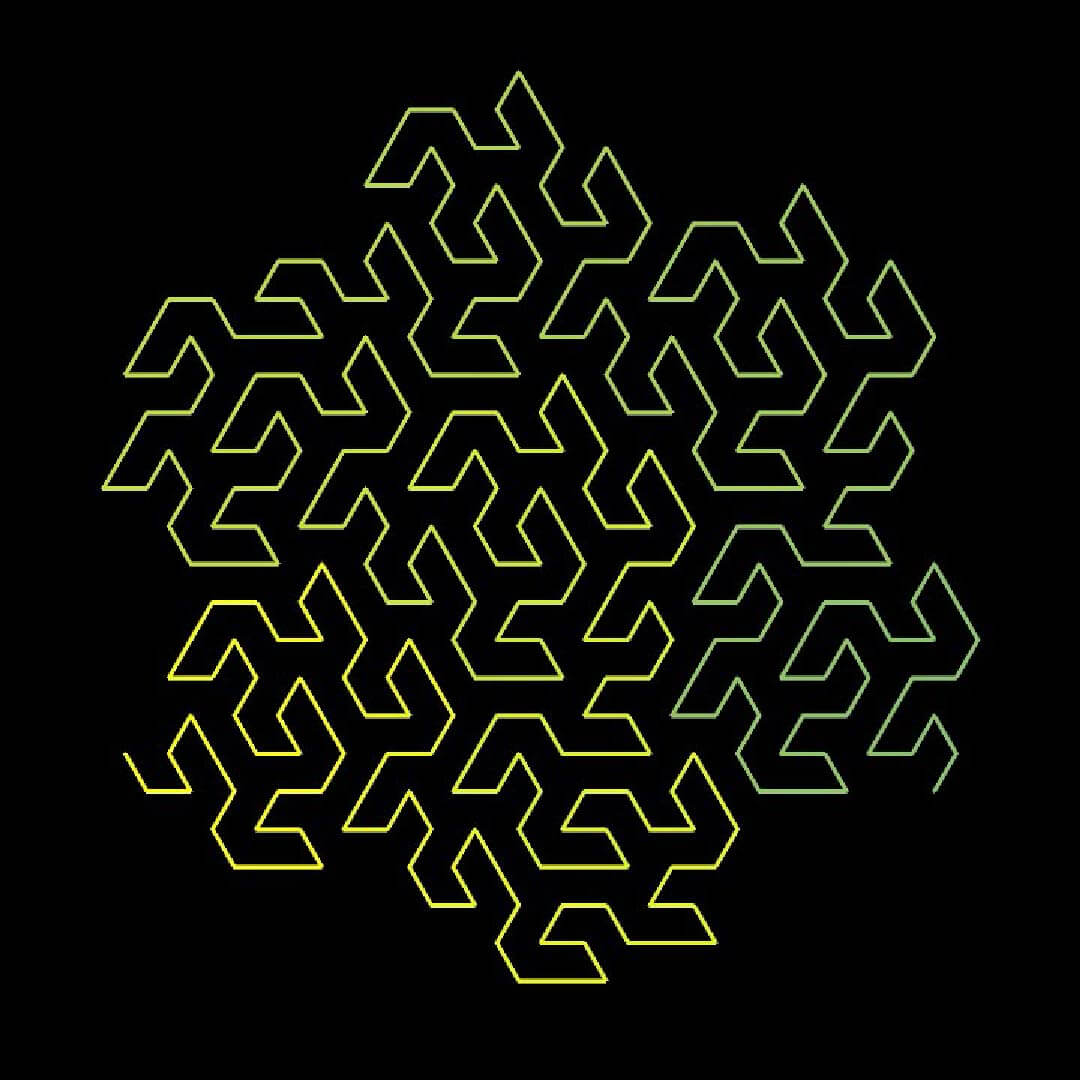

alt text

Repository: https://github.com/cpro-iiit/space-filling-curve/

Hilbert Curves #

Learn about Hilbert Space filling curves here:

https://www.youtube.com/watch?v=3s7h2MHQtxc (Highly Reccomended).
Learn how programing, discrete maths, real analsis comes together to define Space filling curves.
https://www.youtube.com/watch?v=x-DgL49CFlM
https://www.youtube.com/watch?v=v99dsVBE4xQ

Read:

https://arxiv.org/abs/2501.04705

Drawing Hilbert Curves #

Go through bellow:

Uses of Hilbert Curves #

Student Exercises #

These exercises are designed to help you understand space-filling curves, image processing, and C programming. They range from beginner to advanced difficulty.

Beginner Exercises #

Exercise 1: Color Variations (★☆☆☆☆) #

Goal: Learn about RGB color interpolation

Modify the color gradient in main.c to create different visual effects:

a) Create a rainbow gradient (red → yellow → green → cyan → blue)

// Hint: You'll need to vary all three RGB channels
// Consider using different formulas for different segments of t

b) Create a grayscale gradient (black → white)

// Hint: Set r = g = b to the same value

c) Create a custom gradient using your favorite colors

What you’ll learn: Color theory, interpolation, basic math in C

Exercise 2: Different Curve Orders (★☆☆☆☆) #

Goal: Understand how curve order affects complexity

Generate Hilbert curves of orders 2, 4, 6, and 8. For each:

Record the generation time
Note the file size
Observe how the curve pattern changes

Questions to answer:

How does the number of points relate to the order?
What pattern do you see in file sizes as order increases?
At what order does the curve start to “look” space-filling?

What you’ll learn: Algorithm complexity, power-of-two relationships

Exercise 3: Add Image Size to Filename (★★☆☆☆) #

Goal: Practice string manipulation in C

Modify main.c to include the image dimensions in the output filename:

Instead of hilbert_curve.bmp
Generate hilbert_curve_512x512.bmp

// Hint: Use sprintf() to create the filename string
char filename[256];
sprintf(filename, "hilbert_curve_%dx%d.bmp", width, height);

What you’ll learn: String formatting, sprintf(), dynamic naming

Intermediate Exercises #

Exercise 4: Implement Z-Order (Morton) Curve (★★★☆☆) #

Goal: Understand other space-filling curves

Create a new file morton.c and morton.h that implements the Z-order curve (also called Morton order):

void morton_d2xy(int n, int d, int *x, int *y);

The Z-order curve is simpler than Hilbert but doesn’t preserve locality as well. The algorithm interleaves bits:

For d = 1101₂ (binary), separate odd and even bits
Even bits (positions 0,2,4,…) form x coordinate
Odd bits (positions 1,3,5,…) form y coordinate

Challenge: Compare the visual appearance of Hilbert vs Z-order curves. Which one has better locality?

What you’ll learn: Bit manipulation, different space-filling curves, comparative analysis

Exercise 5: Add Command-Line Arguments (★★★☆☆) #

Goal: Learn about argc/argv and user input

Modify main.c to accept command-line arguments:

./hilbert_curve --order 7 --scale 6 --output my_curve.bmp

Requirements:

Parse command-line arguments using argc and argv
Provide default values if arguments aren’t specified
Add a --help option that explains usage
Validate input (e.g., order must be positive, scale must be > 0)

Hints:

#include <string.h>

int main(int argc, char *argv[]) {
    // Default values
    int order = 6;
    int scale = 8;
    char *output = "hilbert_curve.bmp";

    // Parse arguments
    for (int i = 1; i < argc; i++) {
        if (strcmp(argv[i], "--order") == 0) {
            // Get next argument as order
        }
        // ... more parsing
    }
}

What you’ll learn: Command-line parsing, input validation, user-friendly programs

Exercise 6: Measure and Display Performance Metrics (★★★☆☆) #

Goal: Learn about profiling and timing

Add timing code to measure how long each stage takes:

#include <time.h>

clock_t start = clock();
// ... code to time ...
clock_t end = clock();
double cpu_time = ((double)(end - start)) / CLOCKS_PER_SEC;
printf("Time taken: %.3f seconds\n", cpu_time);

Measure and display:

Point generation time
Rendering time
File writing time
Total time
Memory used (width × height × 3 bytes for image)

Bonus: Create a performance comparison table for different orders.

What you’ll learn: Performance measurement, profiling, optimization awareness

Exercise 7: Add Line Thickness Option (★★★☆☆) #

Goal: Enhance graphics capabilities

Modify graphics.c to add a drawThickLine() function that draws lines with variable thickness:

void drawThickLine(uint8_t *img, int width, int height,
                   int x0, int y0, int x1, int y1,
                   uint8_t r, uint8_t g, uint8_t b,
                   int thickness);

Hint: Draw multiple parallel lines offset perpendicular to the main line direction.

Challenge: Make thickness odd to keep the line centered (thickness 1, 3, 5, …).

What you’ll learn: Graphics algorithms, geometry, perpendicular vectors

Advanced Exercises #

Exercise 8: 3D Hilbert Curve (★★★★☆) #

Goal: Extend to three dimensions

Implement a 3D Hilbert curve generator. You’ll need:

New function d2xyz() that converts 1D distance to 3D coordinates
Decision: How to visualize? Options:
- Project to 2D using perspective
- Export to 3D format (OBJ, STL)
- Create animated rotation GIF

Research needed: 3D Hilbert curves use 8 octants instead of 4 quadrants. Look up the algorithm or derive it yourself!

What you’ll learn: 3D geometry, recursive algorithms, data visualization

Exercise 9: Interactive Curve Explorer (★★★★☆) #

Goal: Create a GUI application

Create an interactive program using SDL2 or similar library:

Features to implement:

Real-time curve generation as user drags a slider
Zoom and pan controls
Click on a point to show its distance value
Animation showing curve being drawn
Switch between Hilbert, Z-order, and other curves

What you’ll learn: GUI programming, event handling, real-time graphics

Exercise 10: Reverse Algorithm - xy2d (★★★★☆) #

Goal: Implement the inverse function

Create a function that converts (x,y) coordinates back to distance along curve:

int xy2d(int n, int x, int y);

This is useful for:

Spatial database indexing
Finding which point in the curve corresponds to a pixel
Range queries

Challenge: Make it efficient (O(log n) time, not brute force search).

Hint: Reverse the logic of d2xy - process from coarse to fine levels.

What you’ll learn: Algorithm reversal, spatial indexing, inverse problems

Exercise 11: Curve Comparison Tool (★★★★☆) #

Goal: Analyze space-filling curve properties

Create a program that generates multiple curves and compares them:

Metrics to calculate:

Locality score: Average distance between consecutive points
Clustering: How well nearby curve positions cluster in 2D space
Jump distance: Maximum distance between consecutive points

Curves to compare:

Hilbert curve
Z-order (Morton) curve
Peano curve (if you implement it)
Row-major scan (trivial baseline)

Output a report showing which curve has the best locality properties.

What you’ll learn: Algorithm analysis, metrics design, comparative studies

Exercise 12: Optimized Memory Usage (★★★★★) #

Goal: Reduce memory footprint

The current implementation stores all points in memory. For very high orders (9+), this uses significant RAM.

Implement a streaming version that:

Generates points on-the-fly without storing them
Draws each line segment immediately
Uses only O(1) memory instead of O(n²)

Challenge: You’ll need to maintain state between consecutive d2xy calls or redesign the algorithm.

What you’ll learn: Memory optimization, streaming algorithms, space-time tradeoffs

Exercise 13: Multi-threaded Rendering (★★★★★) #

Goal: Learn parallel programming

Modify the rendering to use multiple threads:

Divide the curve into segments
Assign each segment to a different thread
Each thread draws its portion of the curve
Use mutexes/locks to prevent race conditions when writing to image buffer

Hints:

#include <pthread.h>

typedef struct {
    uint8_t *img;
    Point *points;
    int start_idx;
    int end_idx;
    // ... other needed data
} ThreadData;

void* render_segment(void *arg) {
    ThreadData *data = (ThreadData*)arg;
    // Draw lines from data->start_idx to data->end_idx
}

Challenge: Measure speedup. Does it scale linearly with number of cores?

What you’ll learn: Multi-threading, parallelization, synchronization, performance tuning

Exercise 14: Fractal Animation (★★★★★) #

Goal: Create animated visualizations

Generate an animation showing the curve being drawn progressively:

Create multiple BMP frames showing different percentages complete
Use ffmpeg or similar tool to combine into video/GIF
Add smooth transitions between orders (morphing effect)

Advanced: Show the recursive subdivision process, highlighting which quadrant is being processed at each level.

What you’ll learn: Animation principles, frame generation, video encoding

Exercise 15: Locality Benchmark Suite (★★★★★) #

Goal: Rigorous scientific analysis

Create a comprehensive benchmark that:

Generates curves of varying orders (2-10)
Simulates cache behavior for different access patterns
Measures:
- Average Euclidean distance between consecutive points
- Standard deviation of distances
- Hausdorff distance from ideal space-filling
- Cache miss rate for simulated memory access
Outputs scientific paper-quality graphs and tables
Compares Hilbert, Z-order, Peano, and row-major scanning

Deliverables:

CSV data files with measurements
Python/R scripts to generate publication-quality plots
Written report analyzing results

What you’ll learn: Scientific computing, benchmarking methodology, data analysis, technical writing

Space-Filling Curves Exercises #

These exercises focus specifically on implementing and comparing different space-filling curves. Each curve has unique properties and applications.

Exercise 16: Peano Curve (★★★☆☆) #

Goal: Implement the first space-filling curve ever discovered

The Peano curve (1890) predates the Hilbert curve and divides space into a 3×3 grid at each level.

Implementation requirements:

Create peano.c and peano.h
Implement peano_d2xy(int n, int d, int *x, int *y) where n must be a power of 3
The curve visits 9 subcells in this order: bottom-left to top-left (snake pattern)

Algorithm overview:

Base case: 3×3 grid, cells numbered 0-8
Recursive case: Each cell contains a rotated/reflected 3×3 Peano curve
Use base-9 arithmetic instead of base-4

Pattern for 3×3 grid:

6 7 8
5 4 3
0 1 2

Hints:

Convert distance d to base-9 representation
Each base-9 digit determines which of 9 subcells to enter
Rotation pattern: different for each of the 9 subcells

Challenge questions:

How does Peano’s locality compare to Hilbert’s?
Why might 3×3 subdivision be useful?
Calculate the fractal dimension of the Peano curve

What you’ll learn: Base-n arithmetic, historical algorithms, alternative subdivision strategies

Exercise 17: Moore Curve (★★★☆☆) #

Goal: Implement a closed-loop space-filling curve

The Moore curve is a variant of the Hilbert curve that forms a closed loop (starts and ends at adjacent points).

Key differences from Hilbert:

Uses a 2×2 grid like Hilbert
Forms a closed loop instead of open path
Four copies of Hilbert curve with different orientations
The endpoint connects back near the start

Implementation:

Create moore.c and moore.h
Modify the Hilbert rotation logic to create closed loop
Ensure the last point is adjacent to the first

Algorithm approach:

Moore curve = 4 Hilbert curves arranged in a square:
  [Hilbert↺90°] [Hilbert]
  [Hilbert↺180°] [Hilbert↺270°]

Visualization challenge: Color the curve so the closed-loop property is obvious (different color when returning to start).

Applications: Useful for cyclic data structures, closed-path routing

What you’ll learn: Curve variants, closed paths, rotation transformations

Exercise 18: Sierpiński Curve (★★★★☆) #

Goal: Implement a curve based on the Sierpiński triangle

The Sierpiński curve traverses the Sierpiński triangle fractal, visiting all points except those in removed triangles.

Mathematical background:

Based on the Sierpiński triangle fractal
Uses triangular subdivision instead of square
More complex rotation patterns

Implementation approach:

Create sierpinski.c and sierpinski.h
Use triangular coordinates (barycentric coordinates)
Recursive subdivision into 3 sub-triangles

Coordinate system:

Use (x, y) coordinates where y increases upward
Map triangular structure to square grid for display
Handle the gaps (removed triangles) appropriately

Hint: Start with an equilateral triangle subdivision:

    /\
   /  \
  /____\
 /\  /\
/  \/  \

Challenge:

Create a version that works in hexagonal coordinates
Compare fractal dimension with Hilbert/Peano curves

What you’ll learn: Triangular subdivision, fractal geometry, barycentric coordinates

Exercise 19: Dragon Curve (★★★☆☆) #

Goal: Implement the Heighway dragon fractal

The Dragon curve is created by repeatedly folding a strip of paper and unfolding it at right angles.

Algorithm:

Start with a line segment
At each iteration, replace each segment with two segments at 90° angles
The fold pattern: R, RLR, RRLRLLR, RRLRLLRRLRLRLLR, …

Implementation:

Create dragon.c and dragon.h
Generate the fold sequence (can use bit manipulation)
Draw the curve by following fold instructions

Fold sequence generation:

// For position i in the sequence:
// Count trailing zeros in i
// If that count is even: R (right turn)
// If that count is odd: L (left turn)

Alternative approach: Use L-system grammar:

X → X+YF+
Y → -FX-Y
where + is 90° right, - is 90° left

What you’ll learn: L-systems, recursive folding patterns, fractal generation

Exercise 20: β-Ω Curve Family (★★★★★) #

Goal: Implement a parameterized family of space-filling curves

The β-Ω curves are a family that includes Hilbert, Peano, and others as special cases.

Parameters:

β (beta): branching factor (2, 3, 4, …)
Ω (omega): rotation/reflection pattern

Implementation:

Create a generalized framework in beta_omega.c
Function signature: beta_omega_d2xy(int n, int d, int beta, const int* omega, int *x, int *y)
Omega is an array specifying rotation for each subcell

Special cases:

β=2, Ω=[0,0,0,0] → Hilbert curve
β=3, Ω=[0,0,0,0,0,0,0,0,0] → Peano curve
β=2, Ω=[0,1,2,3] → Z-order curve

This is research-level work - you’re implementing a generalization that includes multiple famous curves!

What you’ll learn: Abstract algorithm design, parameterization, mathematical generalization

Exercise 21: Gosper (Flowsnake) Curve (★★★★☆) #

Goal: Implement a hexagonal space-filling curve

The Gosper curve (aka Flowsnake) fills space using hexagonal geometry instead of square grids.

Properties:

Uses base-7 arithmetic
Hexagonal subdivision
Each iteration replaces a line with 7 segments
Can tile the plane with hexagons

L-system representation:

A → A-B--B+A++AA+B-
B → +A-BB--B-A++A+B
where + is 60° right, - is 60° left

Implementation challenges:

Hexagonal coordinate system
60-degree angles instead of 90-degree
More complex neighbor relationships

Drawing approach:

Use floating-point for segment endpoints
Track current angle (0°, 60°, 120°, 180°, 240°, 300°)
Draw line segments based on L-system

What you’ll learn: Hexagonal geometry, L-systems, non-Cartesian coordinates

Exercise 22: Lebesgue Curve (Z-Order/Morton) (★★☆☆☆) #

Goal: Implement the simplest space-filling curve

The Lebesgue curve (commonly called Z-order or Morton order) is the simplest space-filling curve but has poor locality.

Algorithm (simpler than Hilbert):

Convert distance d to binary
Separate even and odd bit positions
Even bits form x coordinate, odd bits form y coordinate

Example:

d = 13 = 1101₂
Bits: 1 1 0 1
Positions: 3 2 1 0
Odd (y):  1   0   = 10₂ = 2
Even (x):  1   1  = 11₂ = 3
Result: (3, 2)

Implementation:

void morton_d2xy(int n, int d, int *x, int *y) {
    *x = *y = 0;
    for (int i = 0; i < log2(n); i++) {
        *x |= ((d >> (2*i)) & 1) << i;     // Even bits
        *y |= ((d >> (2*i + 1)) & 1) << i; // Odd bits
    }
}

Reverse function (xy2d):

int morton_xy2d(int n, int x, int y) {
    int d = 0;
    for (int i = 0; i < log2(n); i++) {
        d |= ((x >> i) & 1) << (2*i);       // Even bits from x
        d |= ((y >> i) & 1) << (2*i + 1);   // Odd bits from y
    }
    return d;
}

Visual appearance: Creates a “Z” pattern, hence the name.

Applications:

Simple to implement
Used in quadtree indexing
Good for bitwise operations
Poor locality but very fast to compute

What you’ll learn: Bit interleaving, Morton codes, trade-offs between simplicity and locality

Exercise 23: Gray-Code Curve (★★★☆☆) #

Goal: Use Gray code to improve locality

The Gray-code curve uses Gray code ordering instead of binary, which improves locality over simple Z-order.

Gray Code property: Consecutive numbers differ by exactly one bit.

Algorithm:

Convert distance d to Gray code: gray = d ^ (d >> 1)
Apply Morton-style bit interleaving on Gray code
This ensures consecutive points differ by one grid step

Implementation:

void graycode_d2xy(int n, int d, int *x, int *y) {
    int gray = d ^ (d >> 1);  // Convert to Gray code
    // Now apply Morton interleaving on gray instead of d
    *x = *y = 0;
    for (int i = 0; i < log2(n); i++) {
        *x |= ((gray >> (2*i)) & 1) << i;
        *y |= ((gray >> (2*i + 1)) & 1) << i;
    }
}

Challenge: Implement the reverse (xy2d) - it’s more complex because you need to invert the Gray code!

Comparison task: Generate Hilbert, Z-order, and Gray-code curves side-by-side and compare:

Visual appearance
Average distance between consecutive points
Maximum “jump” distance

What you’ll learn: Gray codes, locality improvement techniques, bit manipulation tricks

Exercise 24: Spiral Curve Variations (★★☆☆☆) #

Goal: Implement simple spiral patterns

Create various spiral patterns that traverse a grid:

a) Rectangular Spiral (Ulam Spiral)

16 15 14 13 12
17  4  3  2 11
18  5  0  1 10
19  6  7  8  9
20 21 22 23 24

b) Archimedes Spiral

Smooth spiral using polar coordinates
r = a + b*θ
Map to discrete grid

c) Fermat’s Spiral

r = θ^(1/2)
Used in sunflower seed patterns

Implementation approach:

void spiral_d2xy(int n, int d, int *x, int *y) {
    // Start at center
    // Move outward in square spiral pattern
    // Track direction: right, down, left, up
    // Increase step count each full rotation
}

Applications: Image processing, matrix traversal, memory layouts

What you’ll learn: Spiral patterns, direction tracking, polar coordinates

Exercise 25: Curve Comparison Visualization (★★★★☆) #

Goal: Create a unified comparison tool for all curves

Build a program that generates all implemented curves side-by-side:

Features:

Single image with multiple curves in grid layout
Same order/scale for fair comparison
Labels for each curve type
Color-coding for curve order (common gradient)

Example layout (for 6 curves):

[Hilbert]    [Peano]     [Moore]
[Z-Order]    [Gray-Code] [Spiral]

Extended metrics to display:

Curve name
Total path length
Average consecutive distance
Max consecutive distance
Computation time

Implementation:

Create a curves.h with unified interface:

typedef void (*CurveFunction)(int n, int d, int *x, int *y);

typedef struct {
    const char *name;
    CurveFunction function;
} CurveType;

Array of all curve types:

CurveType all_curves[] = {
    {"Hilbert", hilbert_d2xy},
    {"Peano", peano_d2xy},
    {"Z-Order", morton_d2xy},
    // ... etc
};

Generate composite image with all curves

What you’ll learn: Function pointers, modular design, comparative visualization, unified interfaces

Exercise 26: Interactive Curve Animator (★★★★★) #

Goal: Create animated transitions between curves

Build a program that smoothly animates morphing from one curve to another:

Approach:

Generate points for curve A and curve B
Interpolate positions: P(t) = (1-t)*A + t*B where t goes from 0 to 1
Generate frames for each value of t
Export as video or animated GIF

Advanced version:

Morphing in 3D space (curves on rotating cube faces)
User can click to select start/end curve types
Smooth easing functions (not linear interpolation)

Example transitions:

Hilbert → Peano (shows different subdivision strategies)
Z-order → Hilbert (shows locality improvement)
Square grid → Spiral (shows ordered to centered)

Technical requirements:

Generate 60-120 frames for smooth animation
Use proper interpolation (linear, ease-in-out, etc.)
Export to individual BMP files, then combine with ffmpeg

What you’ll learn: Animation, interpolation, video generation, motion graphics

Exercise 27: Custom Curve Designer (★★★★★) #

Goal: Build a tool to design your own space-filling curves

Create an interactive program where users can:

Define grammar rules: Specify L-system or recursive rules
Set parameters: Branching factor, rotation angles, scaling
Preview in real-time: See curve as rules are adjusted
Validate: Check if curve actually fills space
Export: Save successful curves as C code

UI features:

Text input for L-system rules
Sliders for angles and parameters
Live preview window
Statistical analysis (locality, coverage)

Validation checks:

Does curve visit all points?
Are there gaps or overlaps?
Is the curve continuous?
What’s the fractal dimension?

Example usage:

Rule: F → F+F-F-F+F
Angle: 90°
Iterations: 4
[Generate] → Creates custom curve and shows statistics

What you’ll learn: L-systems, grammar parsing, interactive design, metaprogramming

Exercise 28: 3D Space-Filling Curves (★★★★★) #

Goal: Extend curves to three dimensions

Implement 3D versions of multiple curves:

a) 3D Hilbert Curve

Uses octree subdivision (8 subcubes)
More complex rotations in 3D
Applications in 3D databases

b) 3D Peano Curve

27-cube subdivision (3×3×3)
Base-27 arithmetic

c) 3D Z-Order (Morton)

Interleave bits for x, y, z
Simplest 3D curve

Implementation:

void hilbert3d_d2xyz(int n, int d, int *x, int *y, int *z);

Visualization challenges:

Project to 2D using perspective
Export to OBJ format for 3D viewing
Create rotating animation
Cross-sections at different z-levels

Applications:

3D medical imaging (MRI/CT scans)
Scientific visualization
Spatial databases for 3D models

What you’ll learn: 3D geometry, octrees, spatial indexing in 3D, projection algorithms

Space-Filling Curve Theory Questions #

After implementing several curves, answer these theoretical questions:

Locality Analysis: Rank the curves by locality (average distance between consecutive points). Why do some have better locality?
Fractal Dimension: All space-filling curves have fractal dimension 2. Calculate or estimate this for each curve you implemented.
Computational Complexity: Compare the time complexity of computing d2xy for each curve. Which is fastest? Why?
Memory Access Patterns: If you’re scanning a 2D array stored row-major, which curve gives the best cache performance?
Applications: For each curve type, identify a real-world application where it would be the best choice.
Reverse Functions: Which curves have simple reverse functions (xy2d)? Why are some harder to reverse?
Generalization: Can you define a meta-algorithm that generates any space-filling curve with the right parameters?

Exercise Solutions #

Solutions are not provided intentionally - figuring them out is part of the learning process! However, here are some tips:

Stuck on an exercise?

Break it down into smaller sub-problems
Draw diagrams on paper
Use printf() debugging to understand what’s happening
Search for related concepts online (but implement solutions yourself!)
Compare your approach with the existing code patterns

Testing your solutions:

Start with small inputs (order 2-3) where you can verify by hand
Check edge cases (order 1, very large orders)
Use visualization to spot bugs
Compare output with the original program

Going further:

Read the original Hilbert curve paper (1891)
Study the mathematical properties (see References section)
Explore applications in database systems and computer graphics
Implement curves in other languages (Python, Rust, JavaScript)
